Using the LabelMill, LM6000ARS AutoRound System, configured with a LabelMill Label Applicator automatically applies labels to round products, .5” up to 1” OD. The product hopper loads the products into the custom carousel drum to allow the operator to continuously load products to be quickly and precisely labeled. The system automatically senses when a product is not present in the drum to prevent mis-labeling. A centralized touch screen control allows for easy system management and parameter changes.
LM6000ARS – LM4012
Semi-Automatic Table Top Label Applicator

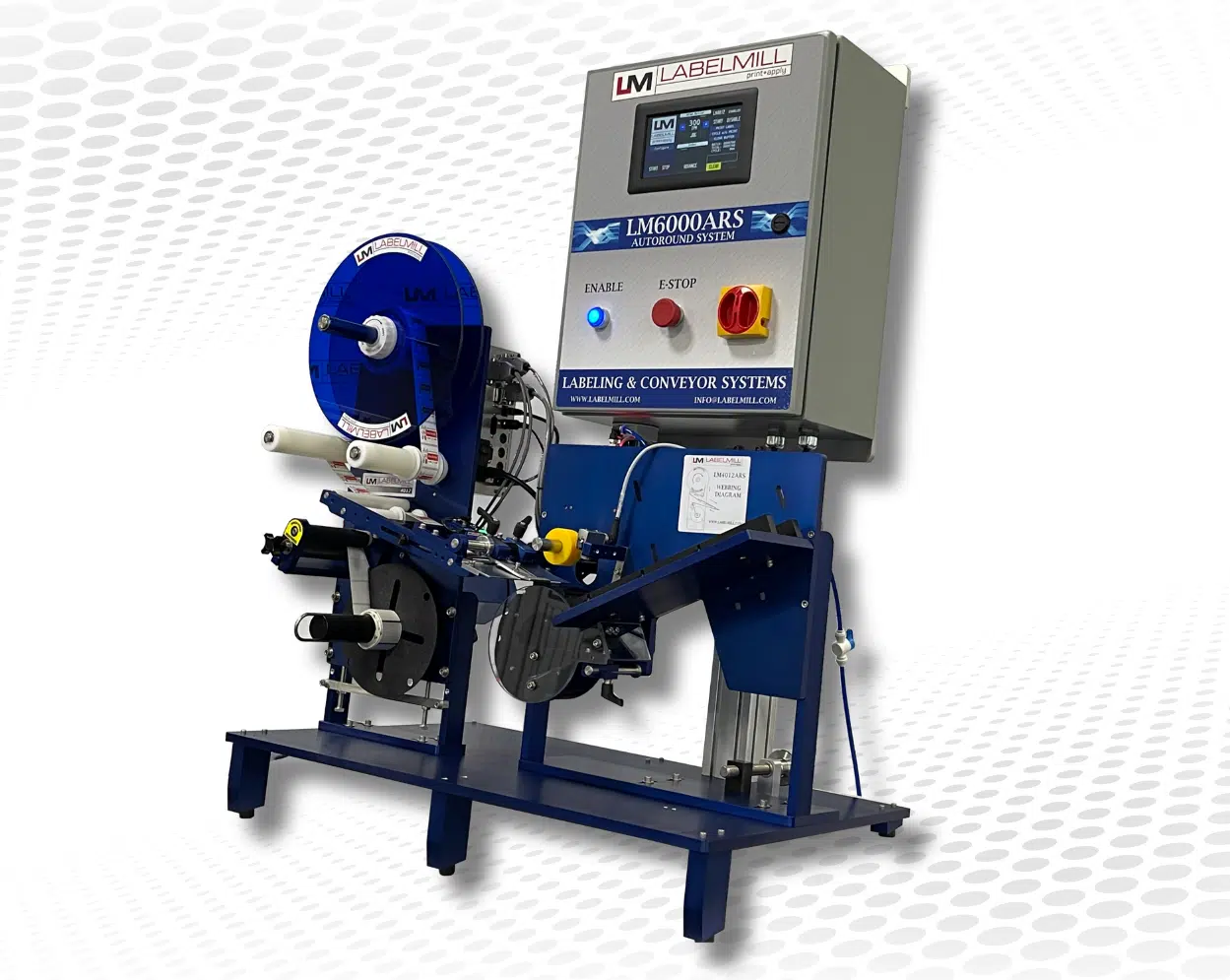

The LabelMill LM6000ARS AutoRound System with a LabelMill LM4012 hybrid servo drive label applicator to automatically apply pre-printed labels to round products.
Available Configurations
LM6000ARS – LM3612
Print & ApplyVariable Data
LM6000ARS – LM4012
Automatic ApplyPre-Printed Labels
Labeling Speed/Rate: 1400 linear inches of web per minute standard
Drive System: Heavy duty 1/8 hp DC drive motor
Label Placement: Label placement up to +/- 1/32” when labels are produced to specifications and product handling is controlled
Electrical: 115 VAC/60Hz – 6 amps
Label Roll Capacity: 12” maximum outside diameter wound on a 3” I.D. core. Die-cut waste removed with minimum of 1/8” separations between labels in running direction
Air Requirements: 80 psi/3 cfm when equipped with tamp, flag, blow, swing, or corner wrap
Label Size: Minimum 1/2” wide x 1/2” long, Maximum 61/2” wide x 12” long (optional sizes available)
Environment: Operating 50-95° F (10-35° C), 15-85% RH, non-condensing
General Size: 25”W x 22”D x 21”H
Weight: 60 lbs. with u-arm
Product Sensors: Photoelectric or dry contact (mechanical limit switch)
Video Reference
LabelMill LM6000ARS & LM4012 Auto Round Label Applicator System for Applying Labels to Small Tubes
LabelMill LM6000ARS AutoRound System w/ LM3612 Print & Apply Label Applicator for Pre-Roll Tubes
