Semi-Automatic

Using the LabelMill, LM6000ARS AutoRound System, configured with a LabelMill Label Applicator automatically applies labels to round products, .5” up to 1” OD. The product hopper loads the products into the custom carousel drum to allow the operator to continuously load products to be quickly and precisely labeled. The system automatically senses when a product is not present in the drum to prevent mis-labeling. A centralized touch screen control allows for easy system management and parameter changes.

LM6000ARS – LM3612

Semi-Automatic Print + Apply Label Applicator

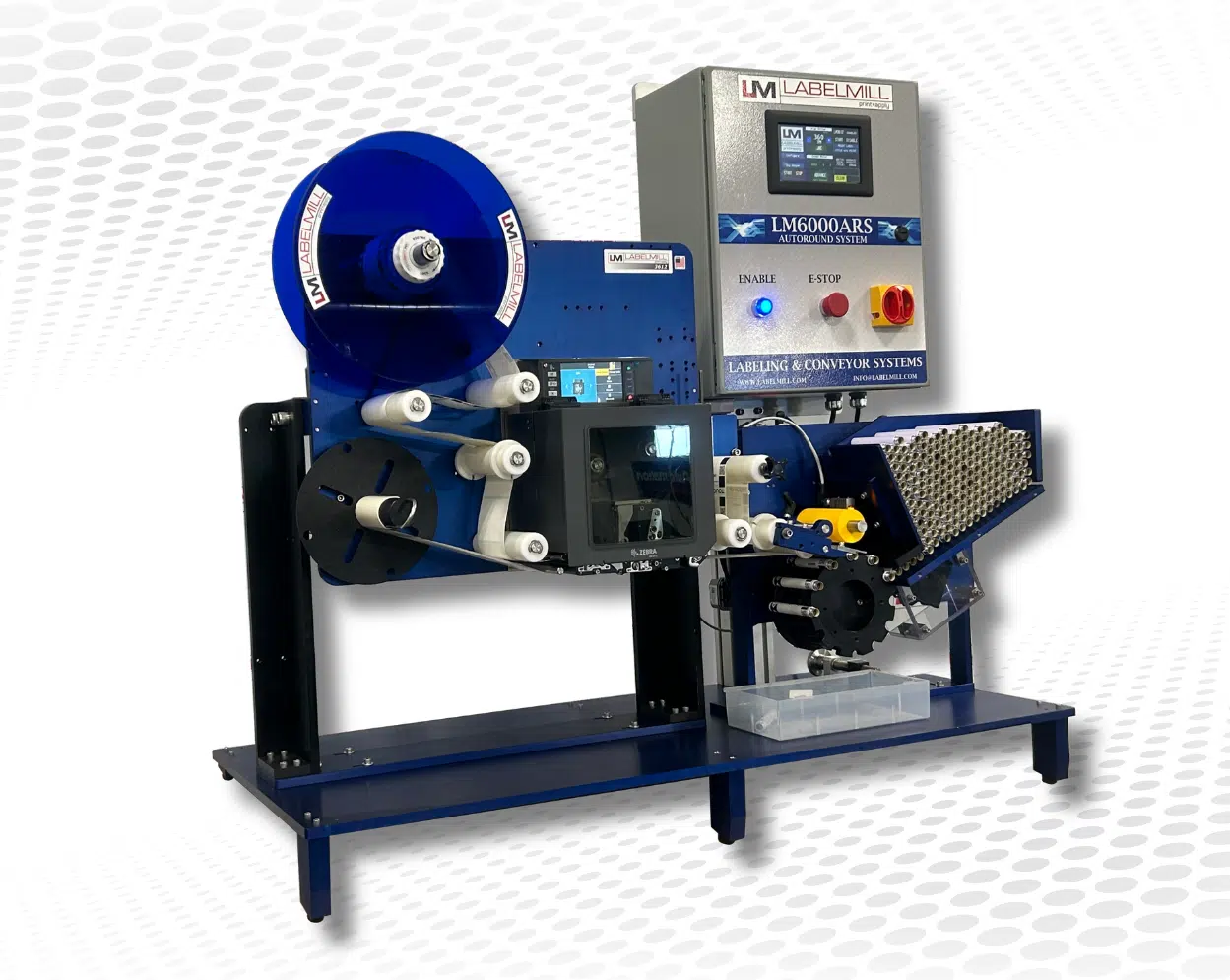

The LabelMill LM6000ARS AutoRound System with a LabelMill LM3612 high performance label applicator to automatically print & apply variable data onto labels to round products.

Request a Quote

Available Configurations

LM6000ARS – LM3612

Print & Apply
Variable Data

LM6000ARS – LM4012

Automatic Apply
Pre-Printed Labels

Works with:

Brochure

The LM6000ARS–LM3612 is a high-performance label applicator designed to print and apply variable-data labels, such as barcodes, dates, and batch information, onto round containers (0.5” up to 1.0” OD) with speed and accuracy. Capable of reaching labeling speeds up to 16″ per second, it significantly boosts throughput while reducing manual handling. Its auto-feed carousel ensures smooth, continuous operation, with sensors that prevent mis-labeling when a container isn’t detected. Built for mid- to high-volume production, this system delivers reliable thermal printing, precise label placement, and easy integration into existing packaging workflows.

Benefits:

Using the LM6000ARS–LM3612 semi-automatic label applicator brings a variety of benefits: it automates and accelerates labeling to dramatically reduce manual labor and human error while boosting throughput, making it ideal for mid- to high-volume production. As part of LabelMill’s dependable lineup of industrial labeling systems, it ensures consistent, high-quality label application and accurate data printing on every container, improving overall production efficiency and packaging precision.

Labeling Speed/Rate: Up to 16” per second and, depending on label and product size, approximately 10 to 90 per minute
Print Method: Thermal transfer and direct thermal
Interface: Centronics parallel, RS-232c Serial, Ethernet, Wireless, USB
Bar Codes: UPC-A, UPC-E, EAN-8, EAN-13, CODE 3912/5, CODE 128, CODABAR, MSI, 2/5, CODE 93, UPC Bookland, Matrix 2/5, POSTNET, UCC/EAN 128, PDF-417, Maxicode, Data Matrix
Bar Code Ratios: 1:2, 1:3, 5:2
Interface Sensors: Product sensor-photo eye/limit switch/PLC input Auxiliary output with connector standard
Electrical: 115 VAC/60Hz – 250 W idle, 600 running
Human Readable Fonts: 12 proportional and mono-spaced fonts including OCR-A and OCR-B representations and an outline font. American and European characters, uppercase and lower case with descenders (code table 850)
Air Requirements: 80 psi/3 cfm when equipped with tamp, flag, blow, swing, or corner wrap
Environment: Operating 50-95° F (10-35° C) 15-85% RH, non-condensing
Label Size: Minimum 1” wide x 1/2” long
General Size: 25”W x 22”D x 21”H
Weight: 61 lbs. with u-arm
Label Roll Capacity: 12” maximum outside diameter wound on a 3” I.D. core. Die-cut waste removed with minimum of 1/8” separations between labels in running direction

Video Reference

LabelMill LM6000ARS AutoRound System w/ LM3612SF Print & Apply Label Applicator for Pre-Roll Tubes

LabelMill LM6000ARS AutoRound System w/ LM4012 Print & Apply Label Applicator for Micro Tubes
